For Industrial Strength Volumes & Temperatures

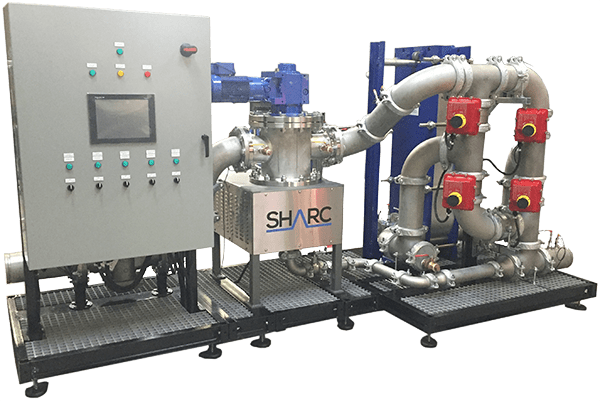

Using patent-pending filtration, the SHARC is designed to handle higher volumes of wastewater.
It can seamlessly fit into just about any condenser water system and provides a more optimal temperature range for increased system efficiency.
- Patent-pending, high efficiency filtration system
- Sizes range from 6 to 12 inch piping (100 to 1600 GPM)
- Chain units together to suit larger flow rates.
- Pair with a heat pump to amplify heat transfer.
- DDC control system with touch screen control, remote monitoring, data trending, and email alerts. (Modbus standard and BACnet integration available).
- Temperature sensors, pressure sensors, and flow meters are included.
- Automated reversing valves control back flush, keeping the heat exchanger operating at design parameters.
|SHARC 660||SHARC 880 LF||SHARC 880||SHARC 1212|
|Type of Process||Continuous flow|
|Design wastewater flowrate||100 - 550 GPM||500 - 850 GPM||750 - 1 600 GPM||1 500 - 4 500 GPM|
|6 - 35 L/s||31 - 54 L/s||47 - 100 L/s||95 - 280 L/s|
|Design secondary side water flowrate||Varies|
|Standard design heat output, at max flow||2 474 MBH||3 824 MBH||7 197 MBH||20 242 MBH|
|0.725 MW||1.12 MW||2.11 MW||5.93 MW|
|Solids outlet connection||2.5"||3.0"||4.0"||6.0"|
|63.5 mm||76 mm||102 mm||152 mm|
|Operating pressure||45 psi|
|Weight||988 lbs||1 300 lbs||1 300 lbs||2 300 lbs|
|448 kg||590 kg||590 kg||1 040 kg|
|Auger motor power||230 - 460 V/3 PH/60 Hz 0.75 HP / 0.6 kW||230 - 460 V/3 PH/60 Hz 1.5 HP / 1.1 kW||230 - 460 V/3 PH/60 Hz 1.5 HP / 1.1 kW||230 - 460 V/3 PH/60 Hz 1.5 HP / 1.1 kW|
|Solids pump motor power||230 - 460 V/3 PH/60 Hz 0.5 HP / 0.4 kW||230 - 460 V/3 PH/60 Hz 3 HP / 2.2 kW||230 - 460 V/3 PH/60 Hz 3 HP / 2.2 kW||230 - 460 V/3 PH/60 Hz 5 HP / 3.7 kW|
|Components||- Macerator unit (unless wastewater is pre-screened) - Sharc unit - Automated valve tree - Heat exchanger - Control panel|
|Auxiliary components (supplied by others)||- Wastewater holding tank - Solids-handling wastewater supply pump(s) - Circulation pump(s) - Heat pump (optional) - DHW Pre-heat tank (for water heating/cooling only)|
